Notes on the electrical connection with the Gigatron
At the ISD I use turned pins for the connection. These give a very good fit in an IC socket with turned contacts. In case of a ZIF socket on the Gigatron, I recommend to insert an IC socket into it. You should be careful with the turned contacts on the ISD, they break off easily when bent. You also need a connection from the CLK output on the ISD to the Gigatron. The easiest way is to solder a jumper cable to R1 (connection R1 Y1, see pictures). The cable does not interfere with the use of a normal ROM.

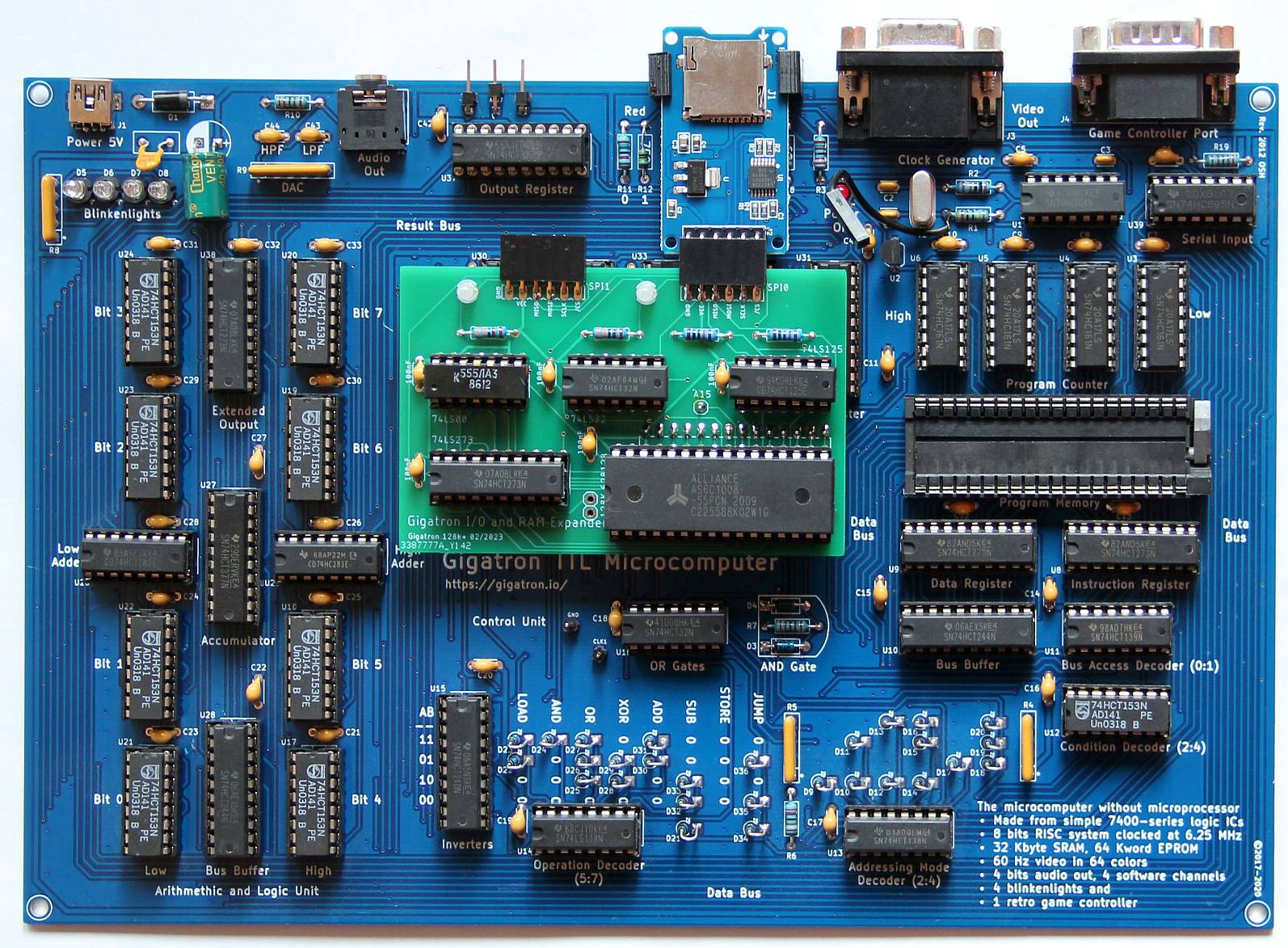

CLK wire on the Gigatron

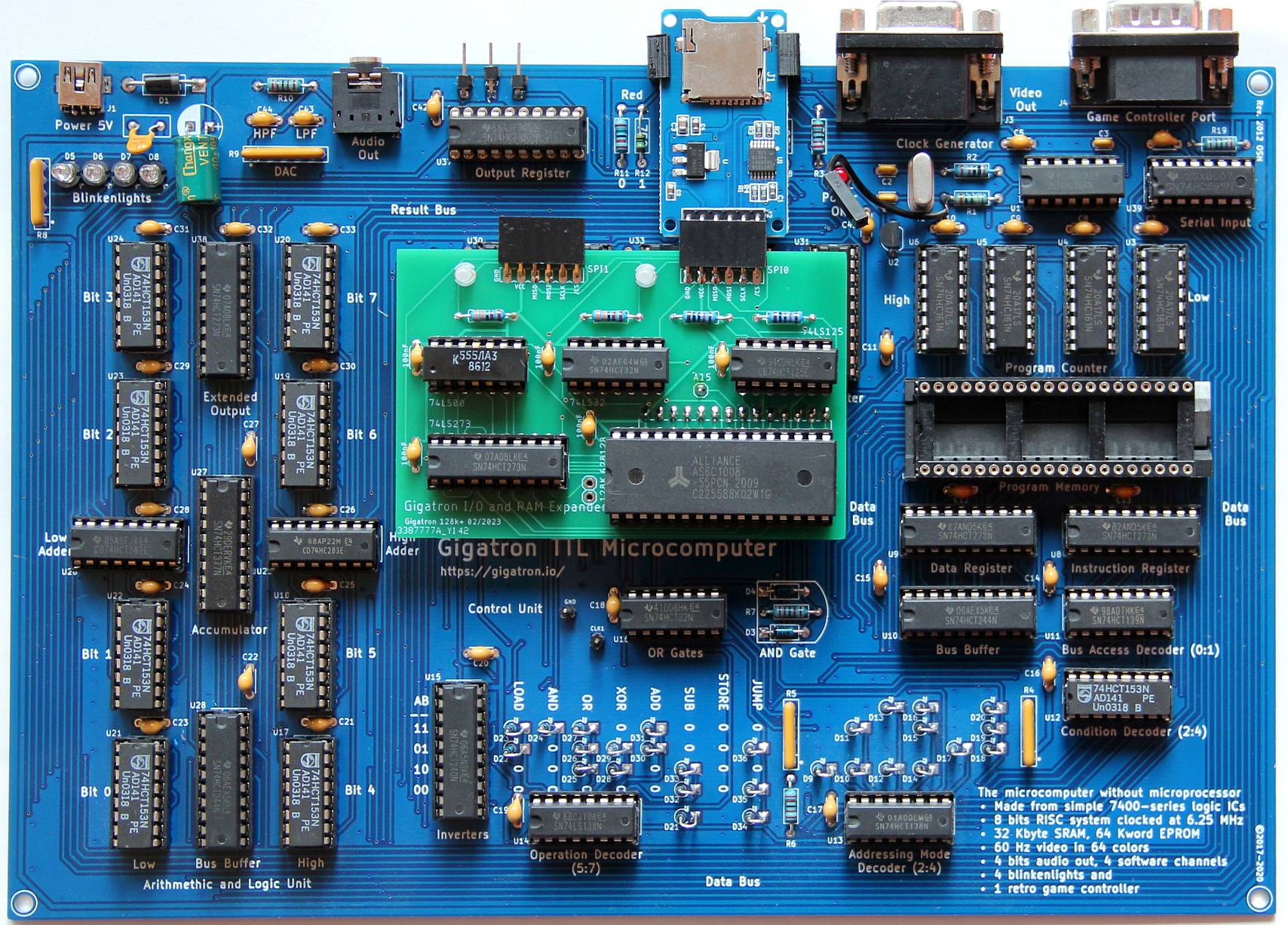

ZIF socket with ic socket

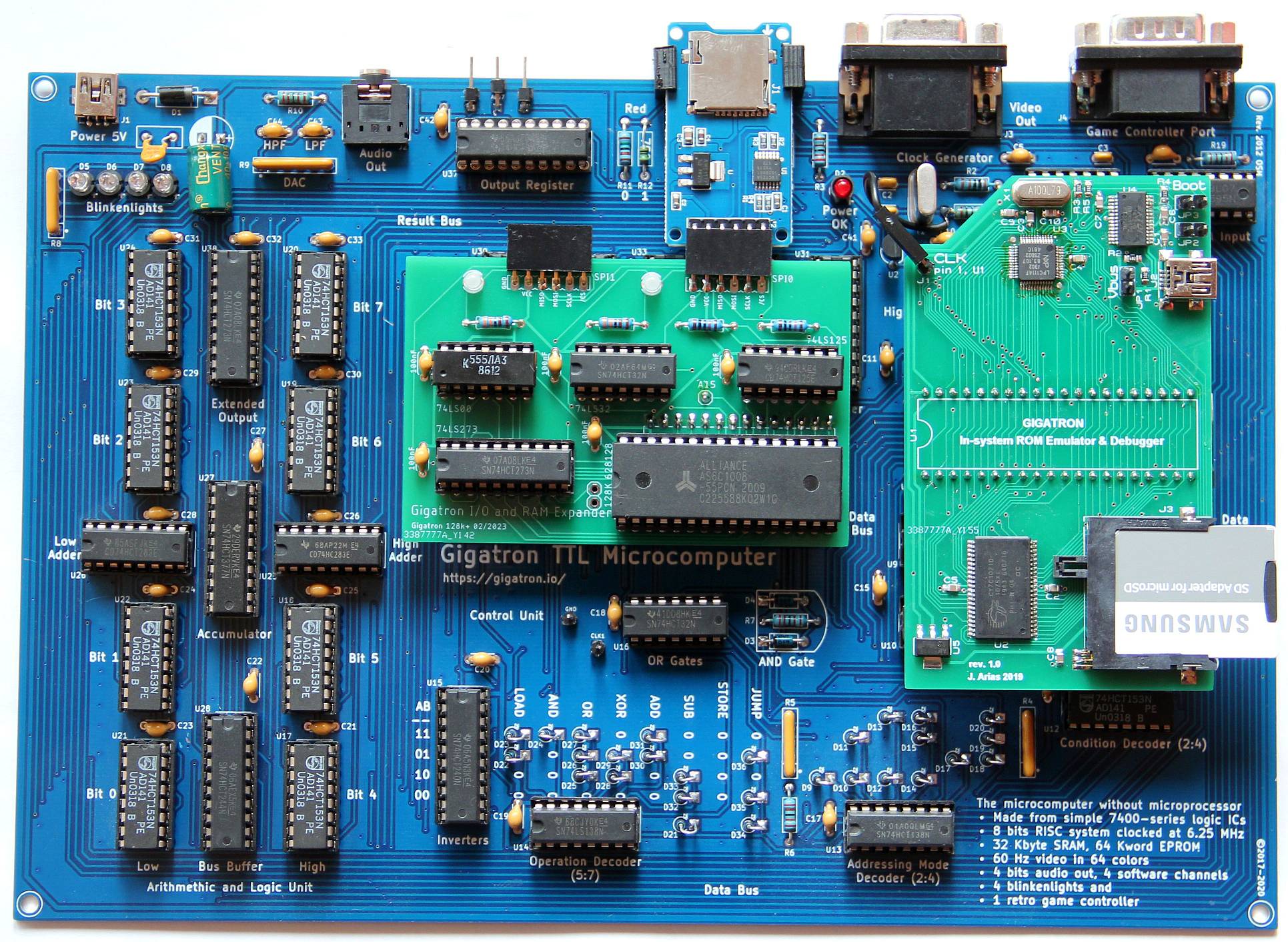

Gigatron with ISD
