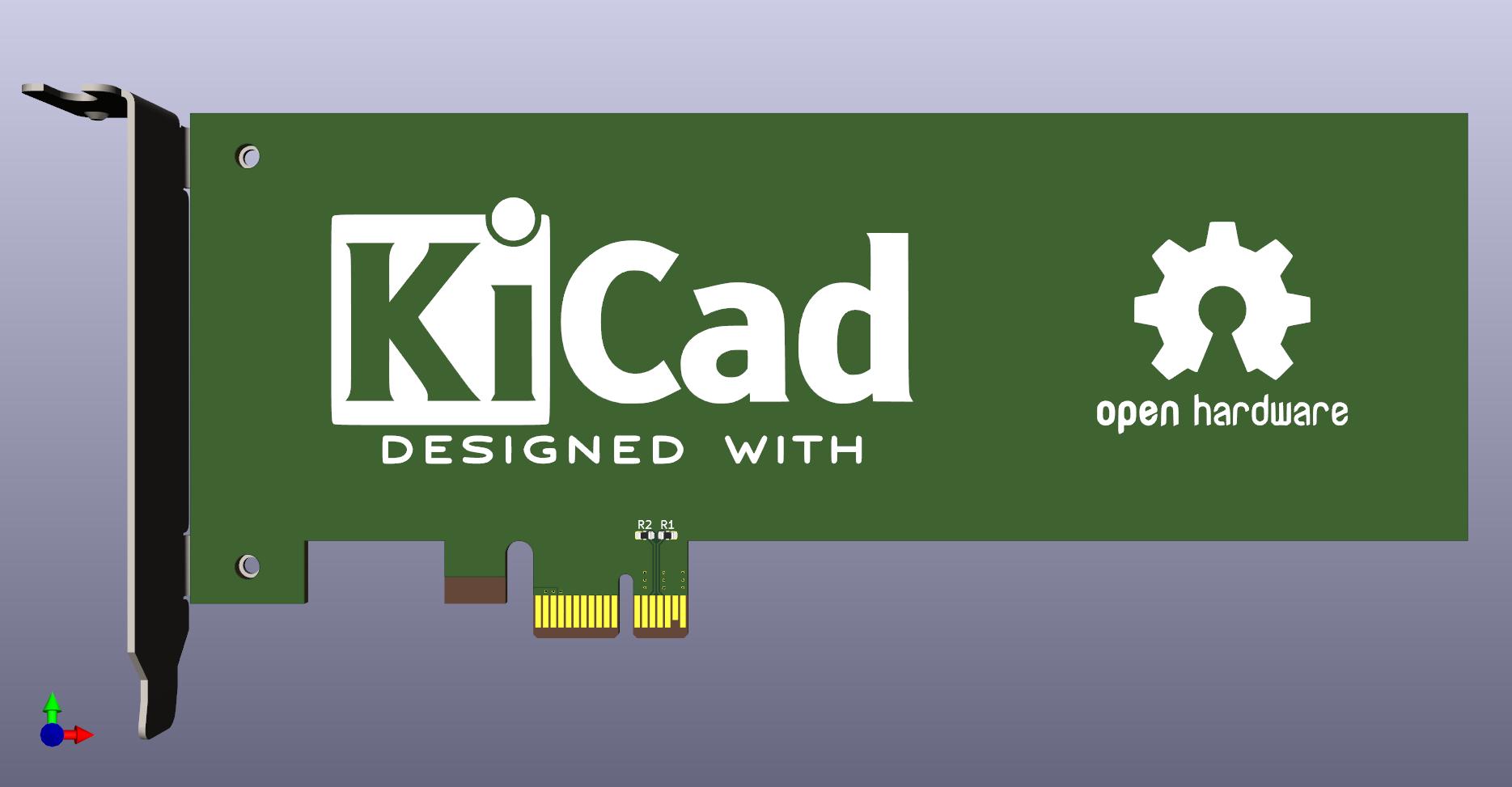

| example.jpg | ||
| README.md | ||
PCIexpress-KiCad
PCI Express™ libraries and templates for KiCad Made using guidelines from PCI Express™ Card Electromechanical Specification Rev. 1.2
Updated for KiCad 9
Contents
Templates:
- x1 cards: full size, half length, low profile
- x2 cards: full size, half length, low profile
- x4 cards: full size, half length, low profile
- x8 cards: full size, half length, low profile
- x16 cards: full size, half length, low profile
Symbols:
- x1
- x2
- x4
- x8
- x16
- Bracket
Footprints:
- x1 with multiple card outlines
- x2 with multiple card outlines
- x4 with multiple card outlines
- x8 with multiple card outlines
- x16 with multiple card outlines
- Full height bracket (with 3D model)
- Low profile bracket (with 3D model)
- Low profile to full height adapter bracker (with 3D model)
License
This documentation describes Open Hardware and is licensed under the CERN OHL v.1.2.
You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions.
