PCIexpress-KiCad

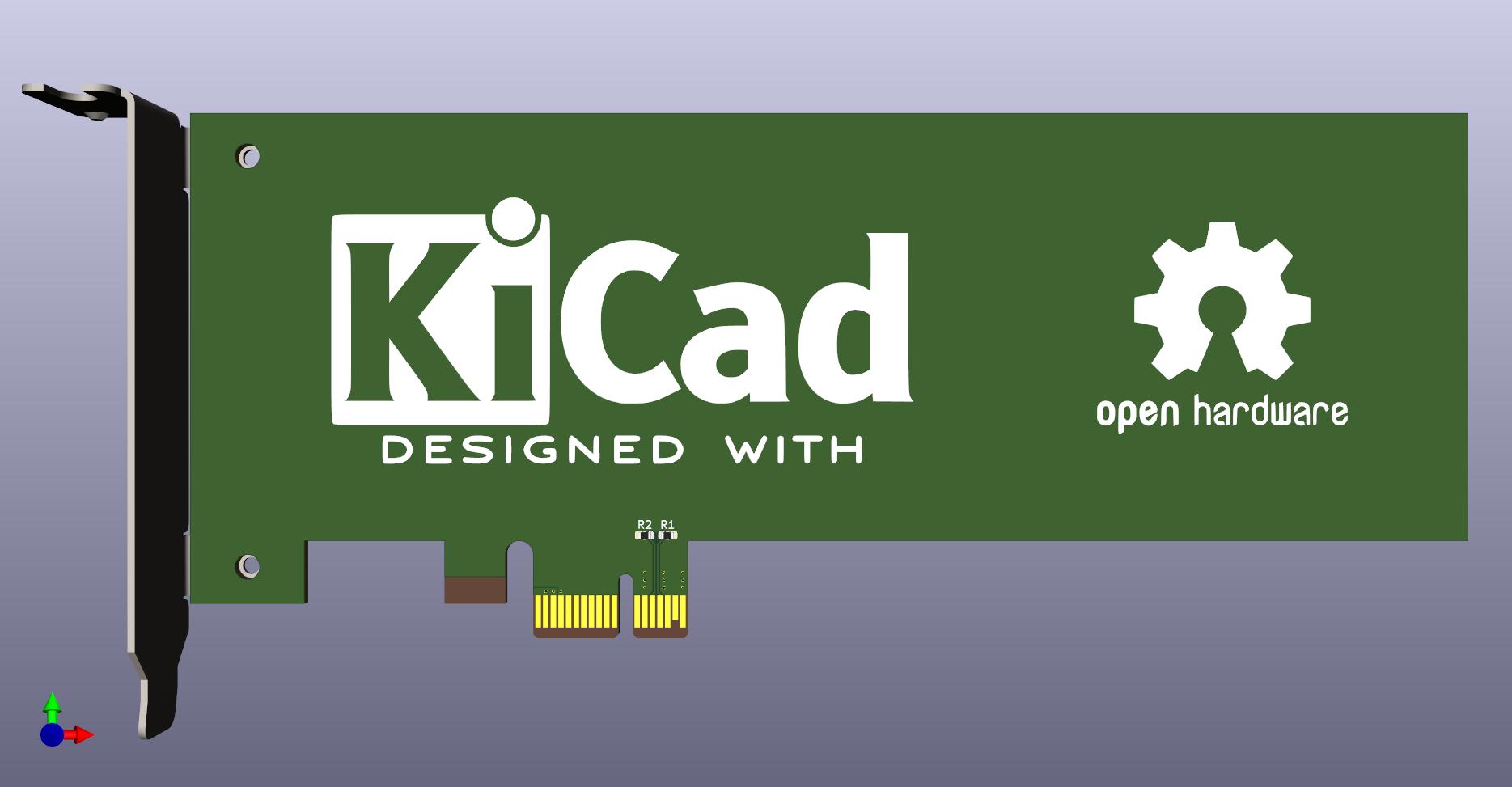

PCI Express™ libraries and templates for KiCad Made using guidelines from PCI Express™ Card Electromechanical Specification Rev. 1.2

Updated for KiCad 9.0.1

Contents

Templates:

• x1 cards: full size, half length, low profile
• x2 cards: full size, half length, low profile
• x4 cards: full size, half length, low profile
• x8 cards: full size, half length, low profile
• x16 cards: full size, half length, low profile

Symbols:

• A Key M.2
• B Key M.2
• C Key M.2
• D Key M.2
• E Key M.2
• F Key M.2
• G Key M.2
• H Key M.2
• J Key M.2
• K Key M.2
• L Key M.2
• M Key M.2
• A+E Key M.2
• B+M Key M.2
• x1
• x2
• x4
• x8
• x16
• Bracket

Footprints:

• A Key M.2 with multiple card outlines
• B Key M.2 with multiple card outlines
• C Key M.2 with multiple card outlines
• D Key M.2 with multiple card outlines
• E Key M.2 with multiple card outlines
• F Key M.2 with multiple card outlines
• G Key M.2 with multiple card outlines
• H Key M.2 with multiple card outlines
• J Key M.2 with multiple card outlines
• K Key M.2 with multiple card outlines
• L Key M.2 with multiple card outlines
• M Key M.2 with multiple card outlines
• A+E Key M.2
• B+M Key M.2
• x1 with multiple card outlines
• x2 with multiple card outlines
• x4 with multiple card outlines
• x8 with multiple card outlines
• x16 with multiple card outlines
• Full height bracket (with 3D model)
• Low profile bracket (with 3D model)
• Low profile to full height adapter bracker (with 3D model)

Notes:

• Transmit and Recieve pairs on M.2 Symbols are from the perspective of module not the host.
• Transmit and Recieve pairs on PCIe symbols are from the perspective of the host not the module. this will be changed in the future.
• Triple check the pinout on your specific M.2 socket to ensure correct wiring.

License

This documentation describes Open Hardware and is licensed under the CERN OHL v.1.2.

You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions.
