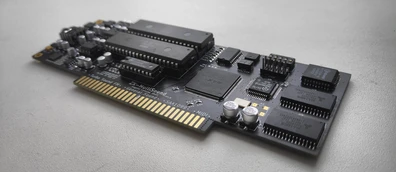

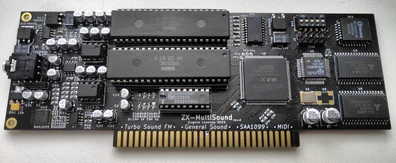

ZX-MultiSound

Sound card for ZX Spectrum (NemoBus).

Tech specs

• TurboSound FM (2xYM2203)
• General Sound (12MHz, 1024Kb of RAM)
• SAA1099 (use port #FF/#1FF to access SAA chip, write #F7/#FF to #FFFD port to enable/disable SAA)
• SounDrive (ports #0F, #1F, #4F, #5F)
• MIDI (controlled via YM(AY) chip - compatible with ZX Spectrum 128K / ZXUNO)
• Low profile PCB: 170x64mm
• 5V and 12V power required
• 4x 1-bit digital DACs for GS and SounDrive

Changelog & current status

• Rev.A - first release. Please note the errata;
• Rev.A1 - fixed all rev.A issues. This revision hasn't been tested.

Sound card has been tested only with ZX Evolution. You can use it with another computer at your own risk.
