ZX-MultiSound

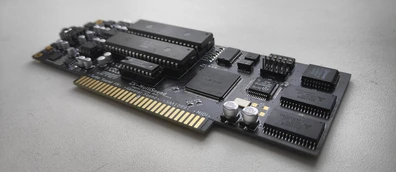

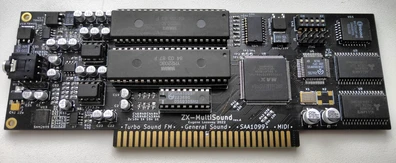

Sound card for ZX Spectrum (NemoBus).



Tech specs

  • TurboSound FM (2xYM2203)
  • General Sound (16MHz, 1024Kb of RAM)
  • SAA1099 (use port #FF/#1FF to access SAA chip, write #F7/#FF to #FFFD port to enable/disable SAA)
  • SounDrive (ports #0F, #1F, #4F, #5F)
  • MIDI synthesizer (controlled via YM(AY) chip - compatible with ZX Spectrum 128K / ZXUNO)
  • Low profile PCB: 170x64mm
  • 5V and 12V power required
  • 4x 1-bit digital DACs for GS and SounDrive

Changelog & current status

  • Rev.A - first release. Please note the errata;
  • Rev.A1 - fixed known rev.A issues. Please note the errata.

Sound card has been tested only with ZX Evolution. You can use it with another computer at your own risk.

Related projects

  • Turbo Sound FM - link
  • ZXM-SoundCard - link
  • ZXM-GeneralSound - link
  • NeoGS - link
